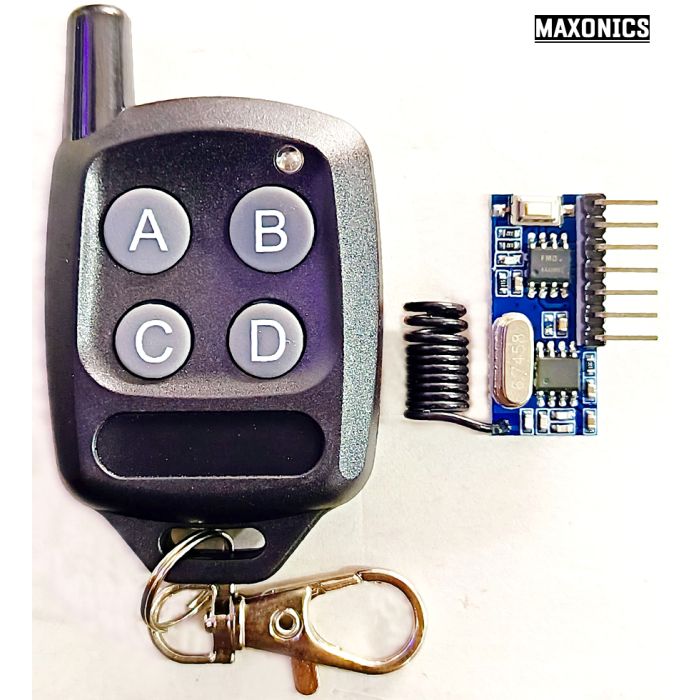

4Channel RF Remote Controls Remote Transmitter and Receiver Switch Module Wireless self Learning 433mhz RF
PROCEDURE
To Purchase Any Item, Press The " Add To Cart " Button Above and Then Continue Shopping. After Making Selections, View Your Cart On The Top Right Corner Of The Screen. Make Corrections If Any and Update Your Cart. Now You Can "Proceed To Check Out". Finally You Have To Press The " Place Order" Button. Now We Will Contact You.
DELIVERY AND RETURN POLICIES
1. Delivery Date and Delivery Charge Will Be Fixed, on Receiving The Customer Pin Code.
2. For Any Product Unsatisfaction, Please Report Within 7Days Of Delivery.
• Introductory Offer Price Displayed
• Model :4Channel RF Remote Controls Remote Transmitter and Receiver Switch Module Wireless self Learning 433mhz RF
• INSTRUCTIONS : Delicate equipment ' Handle with care′
• Please Observe The Product Carefully Before Placing The Order
•https://www.mulberryonline. in
•B : 23
•Pins Instruction GND : ground or negative pole +V : DC3.3~5V input D0 : Data output D1 : Data output D2 : Data output D3 : Data output VT : LED and Learning button Output
•How To Pair Remote to Receiver: Learning remote code: Remote can be paired in three modes: press learning Button once, twice or three times, see Different Modes below: when press learning mode button , LED on Receiver will be turned on and learning mode is active. Press any button of the remote control and LED indicator flashes three times: learning successfully completed. More Remotes can be learned and paired additionally, same above steps
•Different Modes: Learning button Press once:-> In this mode after pairing, the relay connects till the time remote button is pressed and the relay disconnects when remote button is released. Learning button Press twice:-> In this mode after pairing, press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
•Learning button Press three times:-> In this mode after pairing, Press the remote button A, the relay connects, press the remote button B, the relay disconnects.
•How to Unfair Existing Remotes: Press learning button 8 times. Response: LED flashes 7 times and all remotes are disconnected.
Product description
Pin command GND: Ground or negative + V: DC3.3~5V input D0: data output D1: data output D2: Data output D3: Data output VT: output How to match the transmitter and receiver 1. Delete existing data: press the Learn button (on the receiver) 8 times. Response: The LED flashes 7 times. 2. Learn remote code: Press the Learn button (on the receiver) once, twice or three times (see below). The LED lights up: the learning mode is active. Press any button on the remote control. The LED flashes three times: the study is successfully completed. 3. Test: After the above operation, the receiving board can be controlled by the remote controller. Starting with step 2, more transmitters with different IDs can be additionally learned and stored. Different modes can be mixed. Button usage (set mode and start the pairing process): Press once: jog mode (instantaneous mode) Press twice: self-lock mode (4-channel switching mode) Press three times: Interlock mode (the selected channel is activated and cleared if another channel is activated)
