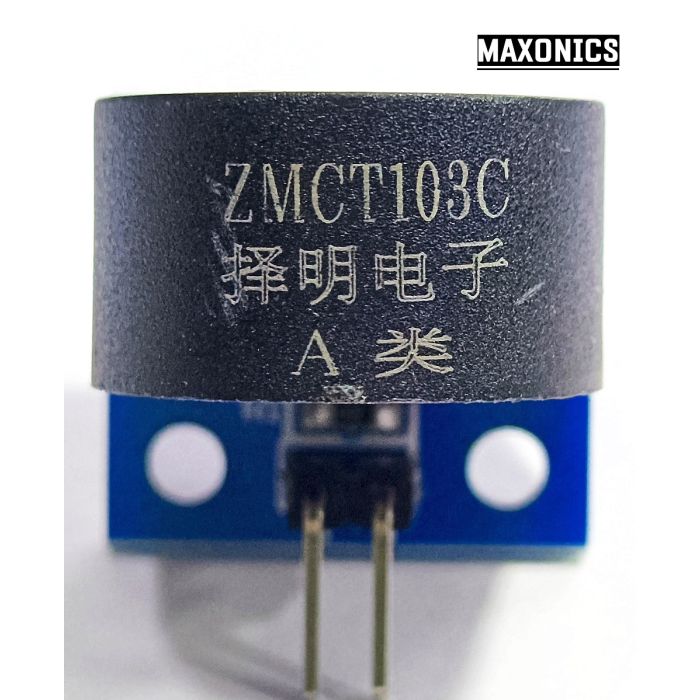

CURRENT SENSOR ZMCT103C Core Module HW666
PROCEDURE
To Purchase Any Item, Press The " Add To Cart " Button Above and Then Continue Shopping. After Making Selections, View Your Cart On The Top Right Corner Of The Screen. Make Corrections If Any and Update Your Cart. Now You Can "Proceed To Check Out". Finally You Have To Press The " Place Order" Button. Now We Will Contact You.
DELIVERY AND RETURN POLICIES
1. Delivery Date and Delivery Charge Will Be Fixed, on Receiving The Customer Pin Code.
2. For Any Product Unsatisfaction, Please Report Within 7Days Of Delivery.
• Introductory Offer Price Displayed
• Model : CURRENT SENSOR ZMCT103C Core Module HW666
• INSTRUCTIONS : Delicate equipment ' Handle with care′
• Please Observe The Product Carefully Before Placing The Order
• https://www.mulberryonline. in
• B - 21
Product Description
1. On-board micro-precision current transformer
2. Onboard sampling resistor
3. Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA
4. Rated input current: 5A
5. Rated output current: 5mA
6. Change: 1000: 1
7. The linear range: 0 ~ 10A (100 ohm)
8. Linearity: 0.2%
9. Precision rating: 0.2
10. Uses isolation voltage: 3000V Measurement
11. Sealing material: epoxy resin
12. Operating temperature: - 40 Celsius - + 70 Celsius
