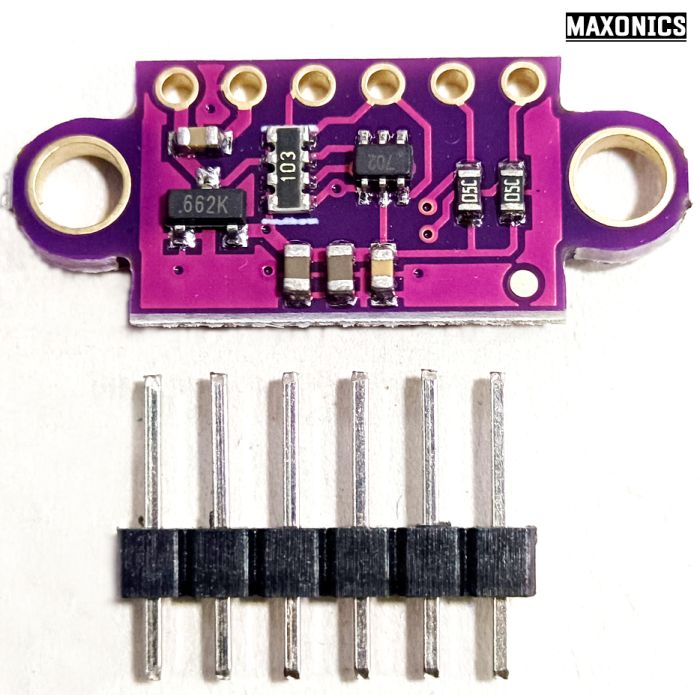

VL53L0X Laser ToF Flight Time Ranging Sensor Module
PROCEDURE
To Purchase Any Item, Press The " Add To Cart " Button Above and Then Continue Shopping. After Making Selections, View Your Cart On The Top Right Corner Of The Screen. Make Corrections If Any and Update Your Cart. Now You Can "Proceed To Check Out". Finally You Have To Press The " Place Order" Button. Now We Will Contact You.
DELIVERY AND RETURN POLICIES
1. Delivery Date and Delivery Charge Will Be Fixed, on Receiving The Customer Pin Code.
2. For Any Product Unsatisfaction, Please Report Within 7Days Of Delivery.
• Introductory Offer Price Displayed
• Model :VL53L0X Laser ToF Flight Time Ranging Sensor Module
• INSTRUCTIONS : Delicate equipment ' Handle with care′
• Please Observe The Product Carefully Before Placing The Order
•https://www.mulberryonline. in
•B : 23
Features
•Laser ToF Technology: Measures distance based on the time taken for light to return, ensuring precise readings.
•High Accuracy: Provides millimeter-level measurement accuracy.
•Wide Measurement Range: Supports distances from 30mm to 2000mm.
•Multiple Interfaces: Supports I2C and PWM communication for flexibility in integration.
• Compact Design: Lightweight and space-efficient for embedded applications.
•Low Power Consumption: Suitable for battery-powered devices.
Specifications
•Sensor Model: VL53L0X.
•Measurement Range: 30mm to 2000mm.
•Operating Voltage: 3.3V–5V.
•Communication Interface: I2C (default address: 0x29) and PWM.
•Field of View (FoV): ±15°.
•Response Time: <50ms for distance measurement.
•Dimensions: L - 25mm, W: 12.2mm
Applications
•Obstacle avoidance in robotics and drones.
•Proximity sensing in industrial automation.
•Gesture recognition and presence detection.
•Depth sensing and mapping.
Pinout:
•VIN (VCC): Power supply input, typically 2.6V to 5V.
• GND: Ground connection.
• SCL: Serial Clock Line for I2C communication.
• SDA: Serial Data Line for I2C communication.
• XSHUT: Shutdown pin to control the sensor's power state.
• GPIO1 (optional): Interrupt output for signaling specific events.
DESCRIPTION
VL53L0X is a high-precision laser Time-of-Flight (ToF) ranging distance sensor module that measures distances with millimeter-level accuracy. Its compact design and advanced technology make it ideal for robotics, drones, and proximity detection applications.
